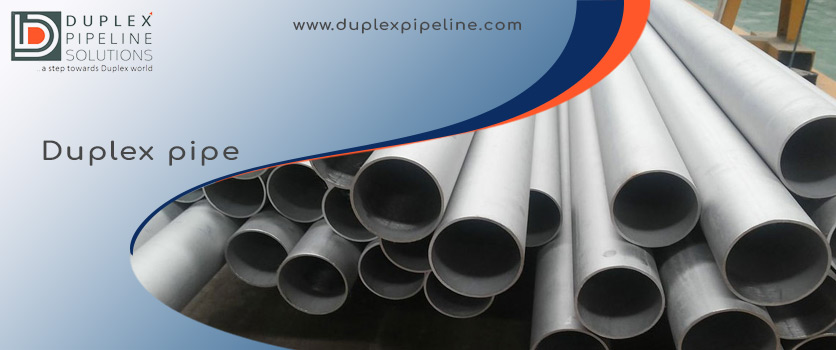

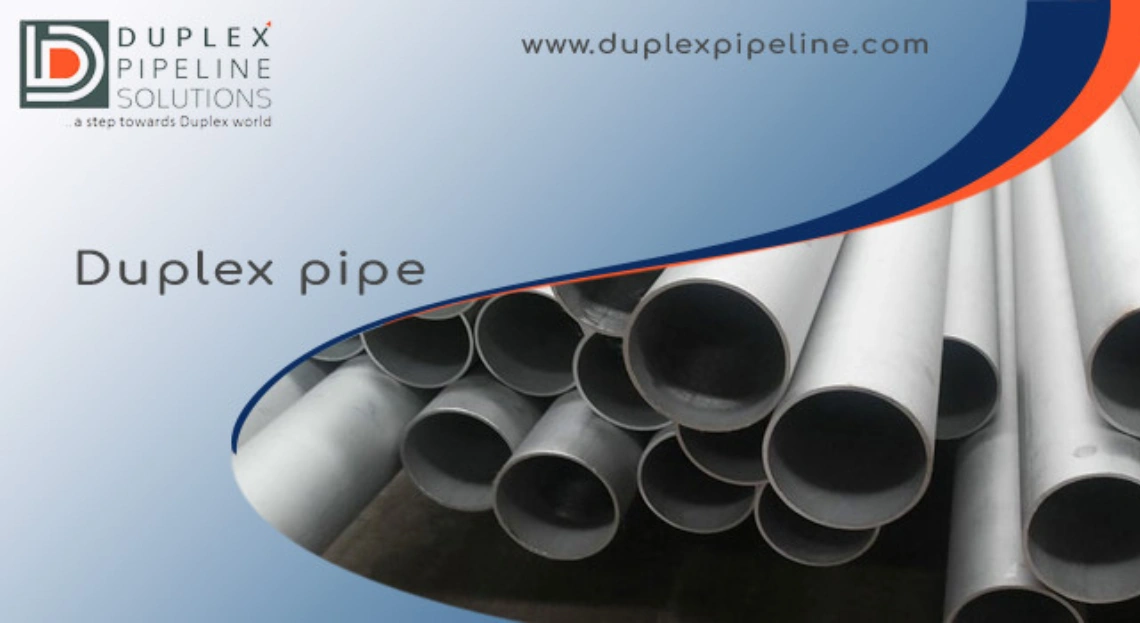

Duplex Pipe Guide: Grades, Specifications, Fittings & Pricing

If you are sourcing a steel pipe for a project that involves harsh chemicals, seawater, or high chloride exposure, a standard stainless grade may not hold up for long. This is where duplex pipe earns its reputation. Built from a dual-phase structure of austenite and ferrite, duplex pipe delivers close to double the strength of conventional 304/316 grades, along with far superior resistance to pitting, crevice corrosion, and stress corrosion cracking. Whether you need duplex 2205 or super duplex 2507, this guide covers the specifications, size charts, applications, and pricing factors you need before you place an order.

What Is a Duplex Steel Pipe?

Duplex pipe is manufactured from duplex stainless steel, an alloy engineered to combine the toughness of ferritic steel with the ductility of austenitic steel in a roughly 50/50 microstructure. This balance is what gives duplex pipe its high mechanical strength and long service life in aggressive environments. Unlike a plain 304/316 pipe stainless fitting, duplex grades are purpose-built for offshore platforms, chemical processing units, desalination plants, and marine piping systems where corrosion resistance directly affects safety and downtime.

Key Properties of Duplex Pipework

Any reliable duplex pipework installation depends on a few defining characteristics:

• High strength – roughly twice that of standard austenitic stainless steels, allowing thinner walls without sacrificing pressure ratings.
• Excellent corrosion resistance – strong performance against chlorides, salts, and acidic media.
• Good fatigue and impact resistance – holds up well even in cold, high-vibration conditions.
• Moderate heat tolerance – stable performance up to roughly 250–300°C.
• Weldability – responds well to TIG, MIG, and MMA welding when the correct filler wire (such as ER2209) and heat control are used.

Seamless Pipe, Welded Pipe & ERW: Duplex Pipe Manufacturing Types

Duplex pipe is available in a few manufacturing formats, and choosing the right one depends on the application:

• Seamless pipe – extruded without a longitudinal weld seam, preferred for high-pressure and critical service lines where a completely uniform wall is essential.
• Welded (ERW) pipe – electric resistance welded, a cost-effective option for larger diameters and general industrial use.
• Square and rectangular sections – used in structural and petrochemical applications where shape matters as much as strength.

SS Steel Pipes: Duplex vs Standard Stainless Grades

A regular 304 or 316 grade pipe is fully austenitic, which makes it easier to form and weld but less resistant to chloride-induced corrosion. Compared with ordinary ss steel pipes, duplex pipe trades a little formability for significantly higher strength and corrosion resistance, which is why it is specified over standard grades in offshore, subsea, and chemical processing environments where failure is not an option.

Duplex Pipe Specifications & Size Range

Duplex Pipeline Solutions stocks duplex pipe across a wide dimensional range to suit both metric and imperial project requirements:

• Outer diameter: 5.0mm – 203.2mm
• Wall thickness: 0.5mm – 20mm
• Manufacturing process: seamless extrusion or ERW
• Hardness: 270 HB max
• Tensile strength: approximately 620 MPa
• Yield strength: approximately 450 MPa
• Common grades: 2205 (UNS S31803/S32205) and 2507 super duplex

Full chemical composition charts, mechanical property tables, and wall-thickness references (metric and imperial) are available on request for project-specific documentation.

Applications: From Stainless Steel Plumbing Fittings to Offshore Pipelines

Duplex pipe is used well beyond heavy industry. Typical applications include:

• Oil & gas – offshore and subsea pipelines, refineries, LNG processing
• Chemical & petrochemical – corrosive fluid transport, heat exchangers, storage tanks
• Marine & shipbuilding – seawater piping, ballast systems, exhaust scrubbers
• Desalination & water treatment – reverse osmosis plants, brine handling
• Power generation – boiler systems and steam pipelines
• Stainless steel plumbing fittings – duplex-grade fittings are increasingly specified where potable or process water lines run through corrosive or coastal environments

Stainless Steel Pipe and Fittings: Building a Complete System

A pipe alone rarely completes an installation. Most projects also need matching stainless steel pipe and fittings — elbows, tees, reducers, end caps, and flanges — manufactured to the same grade to avoid galvanic mismatch. Sourcing duplex pipe and duplex pipe fittings from a single stockist keeps chemical composition, batch certification, and delivery timelines consistent across the entire system.

Steel Pipe Pricing: What Affects Stainless Pipe Price and SS Pipe Cost

Steel pipe pricing is rarely a flat number, and duplex grades carry their own set of cost drivers:

1. Grade – 2507 super duplex typically costs more than standard 2205 due to higher molybdenum and nickel content.
2. Manufacturing route – seamless pipe generally carries a higher price than welded or ERW pipe of the same size.
3. Dimensions – outer diameter and wall thickness directly affect material weight and, therefore, cost.
4. Quantity and delivery timeline – bulk orders and flexible lead times usually bring the stainless pipe price down.
5. Certification requirements – mill test certificates, third-party inspection, and traceability documentation can add to the ss pipe cost.

If you are comparing the cost of stainless steel pipe against duplex alternatives, remember that duplex pipe’s longer service life and lower maintenance needs often offset its higher upfront cost over the life of the project.

Why Source Duplex Pipe from Duplex Pipeline Solutions

Duplex Pipeline Solutions stocks and supplies duplex pipe, seamless pipe, and matching pipe stainless fittings across a wide size range, with:

• Stringent quality control and compliance to international standards
• Competitive, transparent pricing and fast delivery
• Customisation available for project-specific dimensions and grades
