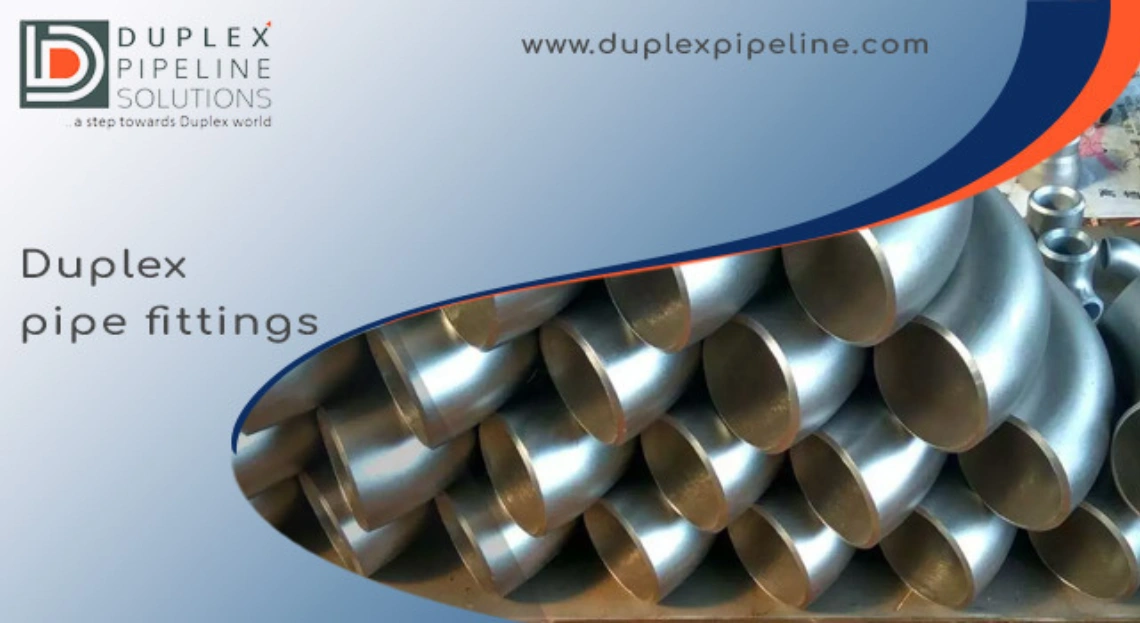

Duplex Steel EN Pipe Fittings: Specifications, Types & Applications
Duplex Steel EN Pipe Fittings: Specifications, Types & Applications
If your piping system needs a steel EN pipe fitting that can handle aggressive fluids, high pressure, and extreme temperatures without failure, duplex is the material to specify. Duplex pipe fittings are made from DSS, a combination of austenitic and ferritic steel, and project engineers consistently prefer this material over standard grades for its corrosion resistance, high strength, and toughness. This guide covers the specifications, types, chemical composition, and pressure ratings that make duplex steel EN pipe fittings a reliable choice for connecting and controlling fluid flow across chemical, oil and gas, and process piping systems.
What Are Duplex Steel EN Pipe Fittings Used For?
Duplex pipe fittings are used to connect and control fluid flow across all kinds of piping and plumbing fitting systems. As a category of pipe fittings, they typically include elbows, tees, reducers, couplings, and flanges:
- Elbow – changes the direction of flow in a piping system
- Tee – a T-shaped pipe connector that lets fluids branch off in different directions
- Reducer – connects pipes of different sizes
- Caps and plugs – close the end of a pipe
Steel EN Pipe Fitting Types & Specifications
Duplex Pipeline Solutions manufactures pipe & pipe fittings across the following range:
- Coating: 3LPE, FBE
- Application: chemical processing and industrial piping
- Size: 1/2″ – 48″
- Tensile strength: 60–95 Ksi
- Testing: hydrotest
- Schedule: SCH5 – SCH XXS
- Method: seamless or welded
- Yield strength: approximately 415 MPa
Performance in Extreme Temperatures
Duplex pipe and pipe fittings maintain their mechanical strength and integrity without deformation in high-temperature applications, thanks to good creep resistance under prolonged exposure to elevated heat. At the other end of the scale, duplex retains its toughness and ductility at low temperatures without becoming brittle — which is why industries such as liquefied natural gas processing and refrigeration systems consistently favor it over standard ss pipe fittings.
Pressure Ratings of Duplex Pipe Fittings
Duplex pipe fittings are typically available in pressure ratings ranging from 3,000 psi to 9,000 psi for small fittings. For large-sized buttweld fittings such as flanges, pressure ratings can sometimes extend beyond 10,000 psi. To obtain accurate, application-specific ratings, it’s best to confirm directly with your fitting supplier before finalizing a piping design.
Corrosion Resistance & Service Life
A duplex end cap exhibits sturdy resistance to a wide range of corrosive environments, including chloride-containing solutions, acids, and alkaline solutions. Compared with standard austenitic stainless steel, duplex typically displays higher strength, and using duplex end caps and other fittings can meaningfully extend the overall service life of a piping system. Duplex also offers good fatigue resistance, which matters in dynamic or cyclic loading conditions common in process plants.
Surface Finishes for Duplex Steel Pipe Fittings
Duplex buttweld fittings can be finished using various surface treatments to meet requirements and enhance performance:
- Pickling – removes impurities, scale, and oxides from the fitting surface using acid solutions
- Passivation – a subsequent treatment that creates a protective oxide layer, improving corrosion resistance
Why Choose Duplex Pipeline Solutions for Pipework Fittings
- Leading duplex pipe fittings manufacturer in India
- Full chemical and mechanical property documentation available on request
- Custom sizes, schedules, and coatings for every project
